D-SUB Socket

	Product Types
Connectors • RCA Jack(PIN Jack) • AV Composite-board • AV Connector (Slim TV) • MINI DIN Socket • SCART Socket • POF Socket • Phone Jack • DC Power Jack • Push Terminal Socket • RF Connectors • Pin Header Socket • Wafer Socket • Modular Jack • D-SUB Socket • USB Socket • IEEE1394 Socket • HDMI Socket • DVI Socket • SATA & ESATA Socket • Battery Socket • FFC & FPC Connectors • Card Socket • MDR Socket • MINI PCI Socket Cable Assemblies • HDMI & DVI Cable • AV Cable • Data Cable • Communications Cable • IR Cable • Power Cable • Wire Harness • Adaptor Other Products • Composites

Home > Product Types > Connectors > D-SUB Socket

DB50RM-S3	Product Description	Documents
	D-Sub Conn, Receptacle, Male, High-density, Half Pitch (1.27mm), 50 Pos., 3 Rows, Straight,Through Hole type, with Screw Nuts, Enhanced Board Lock Posts	• Dimension • 3D Model

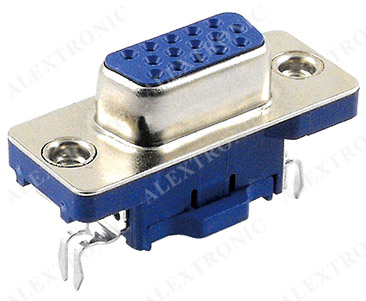

DB105F-21	Product Description	Documents
	D-SUB Socket, 15 Pin, 10.5mm Height, Short 9 Assembly.	• Dimension • 3D Model

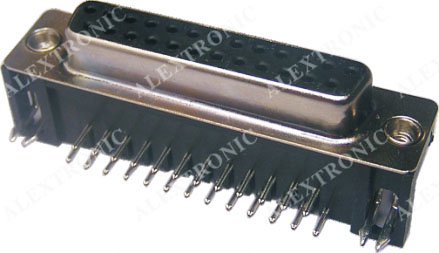

DBB25F-11	Product Description	Documents
	D-SUB Socket, 25 Pin, Female Receptacle, Right Angle, Through Hole.	• Dimension • 3D Model

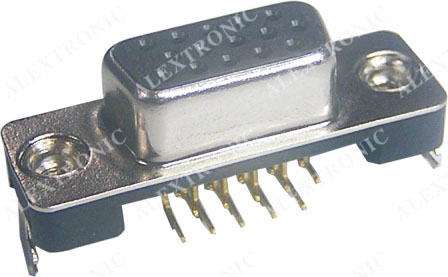

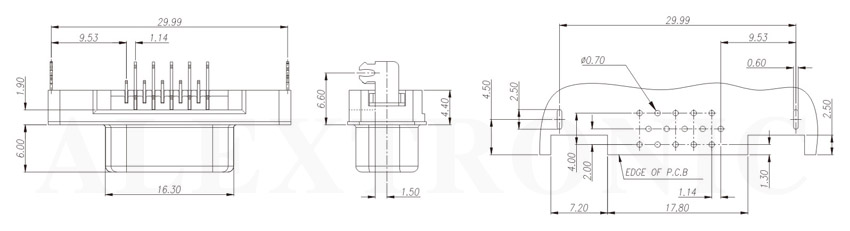

DBB15F-13	Product Description	Documents
	Slim D-SUB Socket, 15 Pin, Right Angle, PCB Thickness 1.20mm...	• Dimension • 3D Model

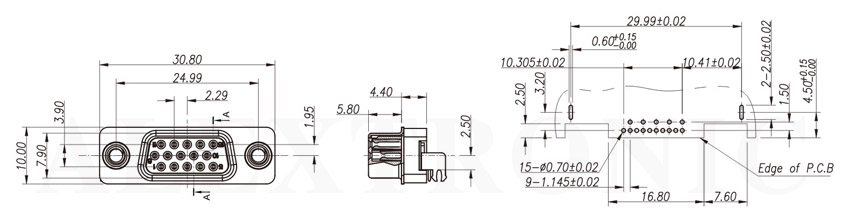

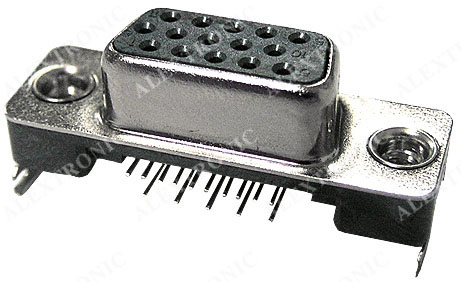

DBB15F-1C	Product Description	Documents
	Slim D-SUB Socket, 15 Pin, Right Angle, PCB Thickness 1.20mm, Reverse.	• Dimension • 3D Model

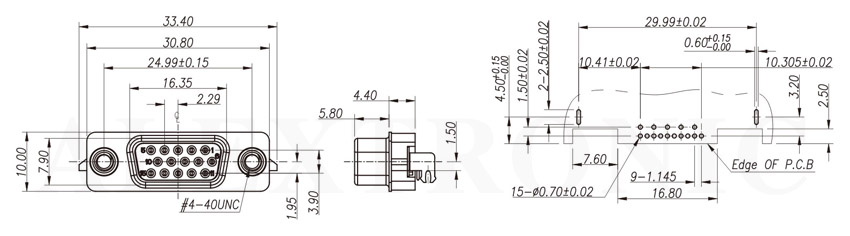

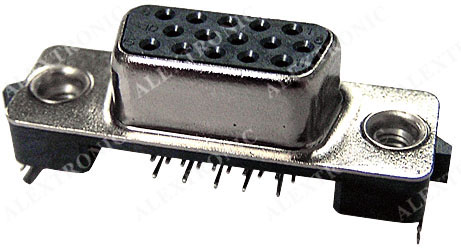

DBB15F-1B	Product Description	Documents
	Slim D-SUB Socket, 15 Pin, Right Angle, PCB Thickness 1.20mm, Correct.	• Dimension • 3D Model

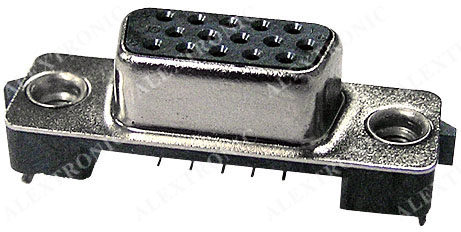

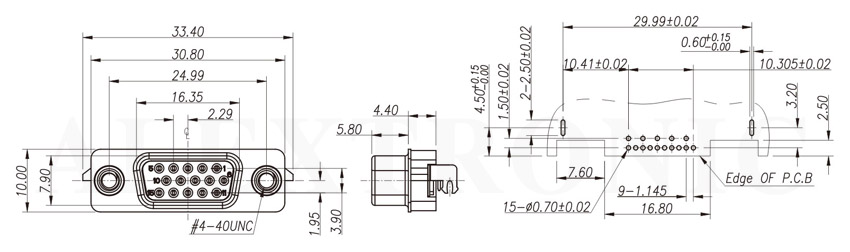

DBB15F-1A	Product Description	Documents
	Slim D-SUB Socket, 15 Pin, Right Angle, PCB Thickness 1.20mm, Correct.	• Dimension • 3D Model

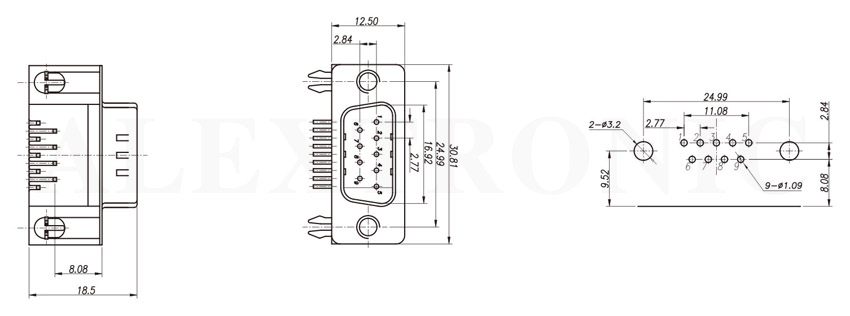

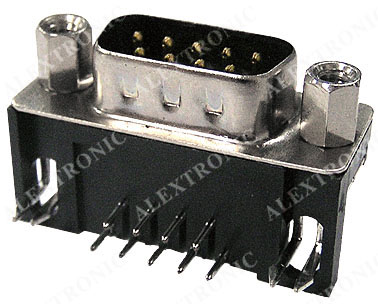

DBB09M-11	Product Description	Documents
	D-SUB Socket, 9 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

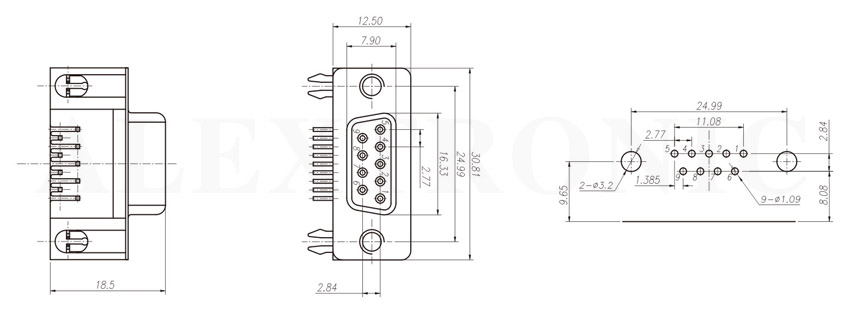

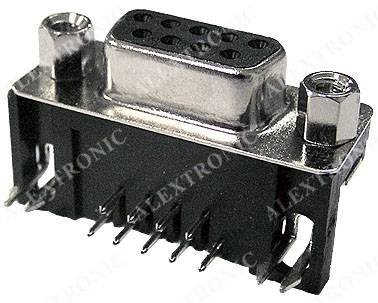

DBB09F-11	Product Description	Documents
	D-SUB Socket, 9 Pin, Female Receptacle, Right Angle, Through Hole.	• Dimension • 3D Model

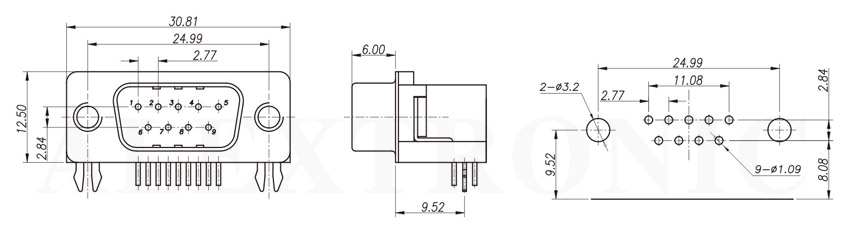

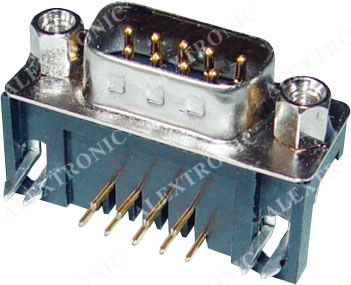

DBB03M-09	Product Description	Documents
	D-SUB Socket, 9 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm...	• Dimension • 3D Model

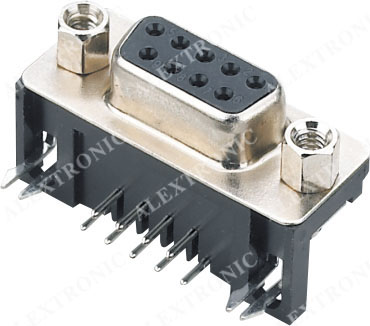

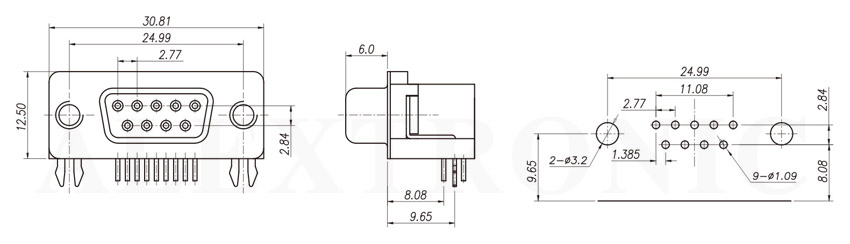

DBB02F-09	Product Description	Documents
	D-SUB Socket, 9 Pin, Female Receptacle, Right Angle, Through Hole...	• Dimension • 3D Model

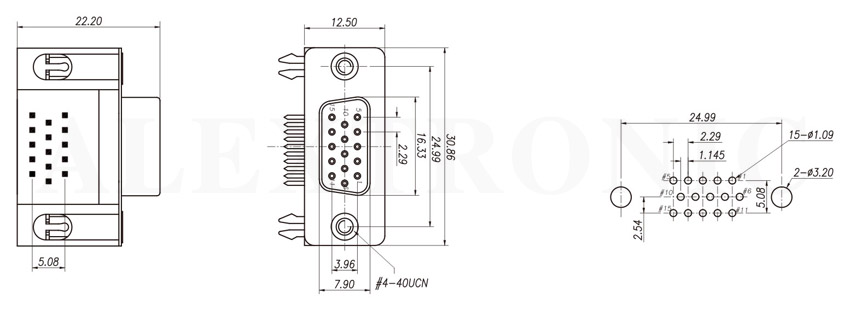

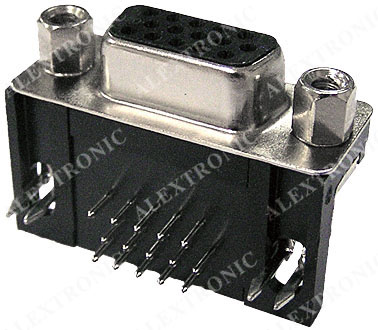

DB815F-11	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

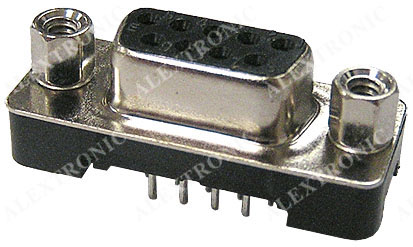

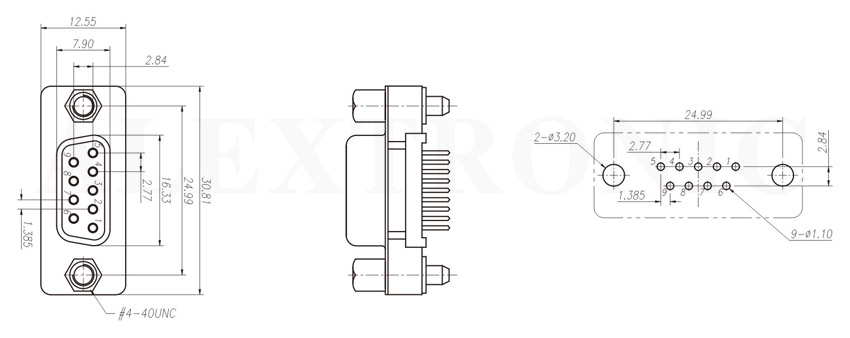

DB609F-21	Product Description	Documents
	D-SUB Socket, 9 Pin, Female Receptacle, Vertical Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

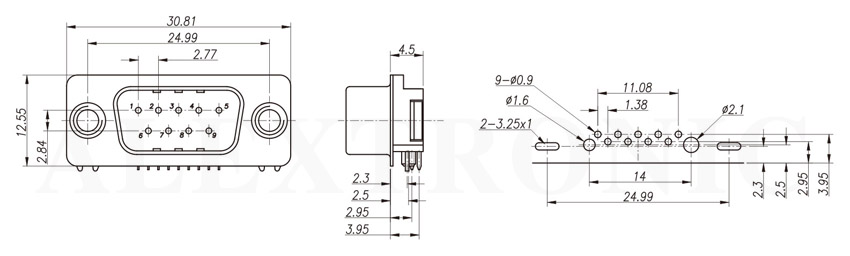

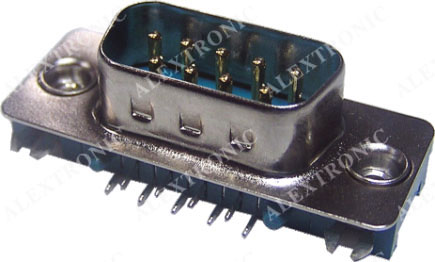

DB309M-11	Product Description	Documents
	D-SUB Socket, 9 Pin, Male Plug, Right Angle, Through Hole.	• Dimension • 3D Model

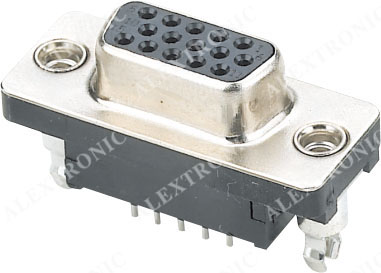

DB015F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

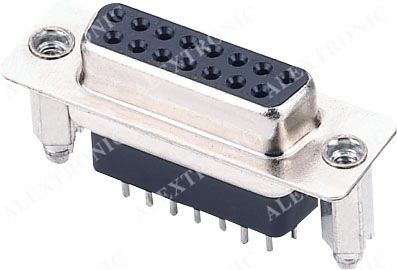

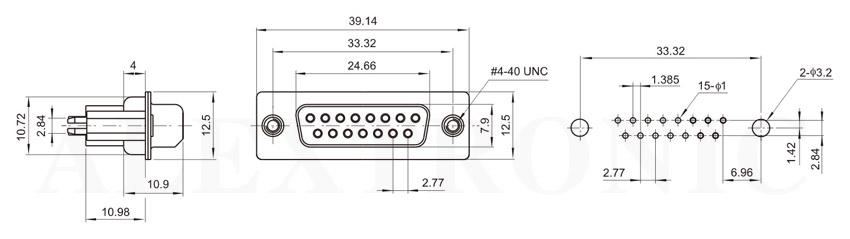

DB014F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

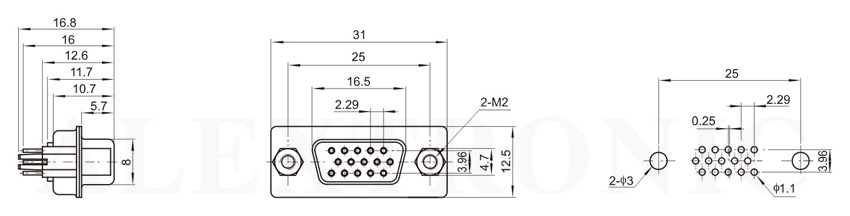

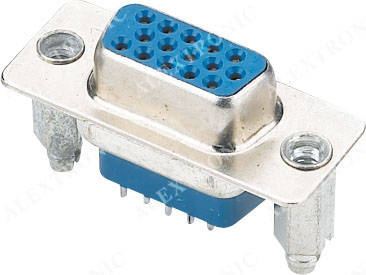

DB013F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

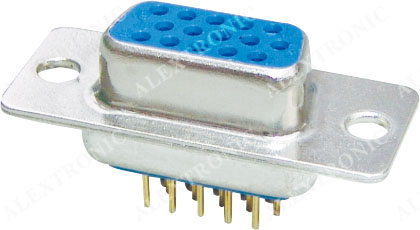

DB012F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

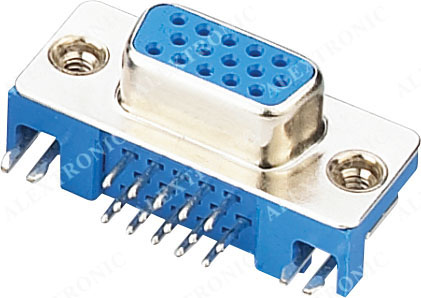

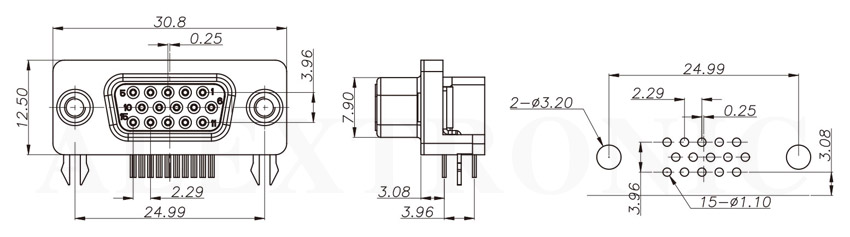

DB010F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

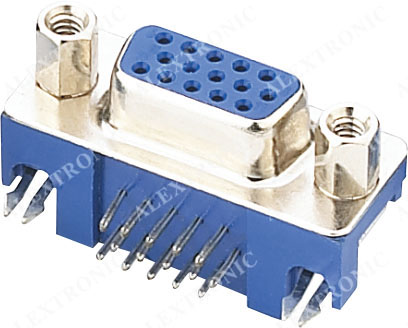

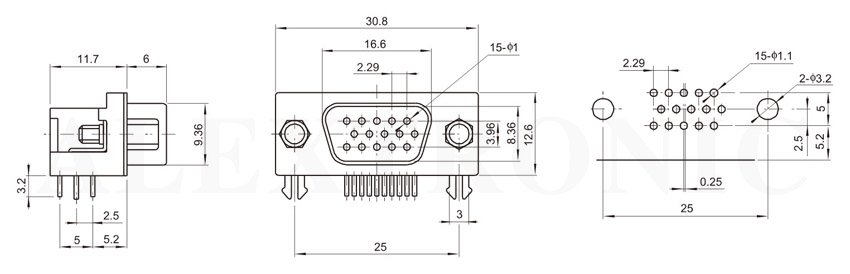

DB009F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

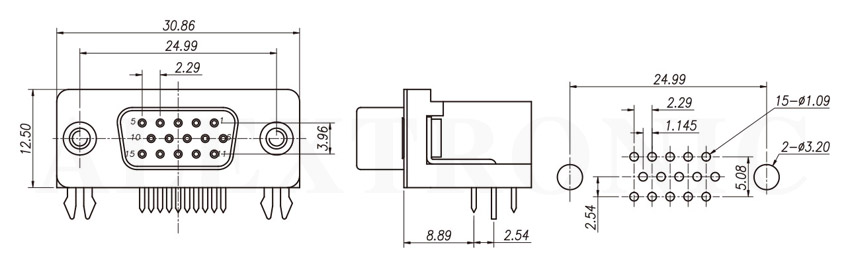

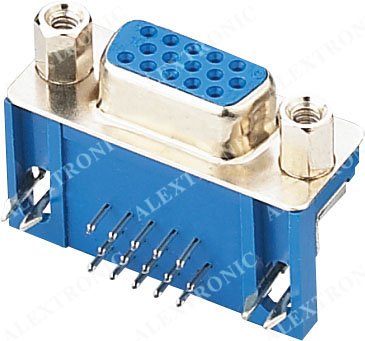

DB008F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

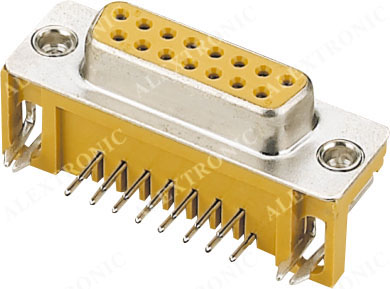

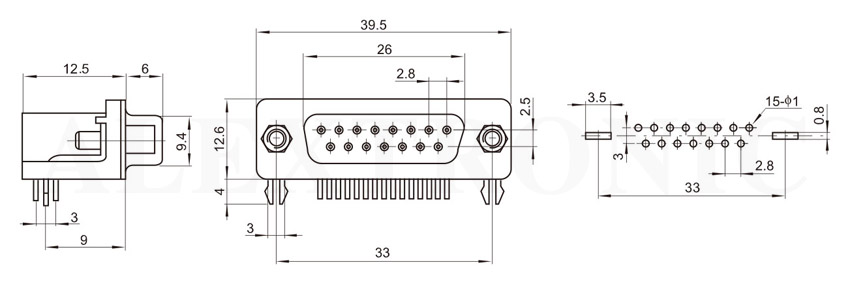

DB007F-09	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

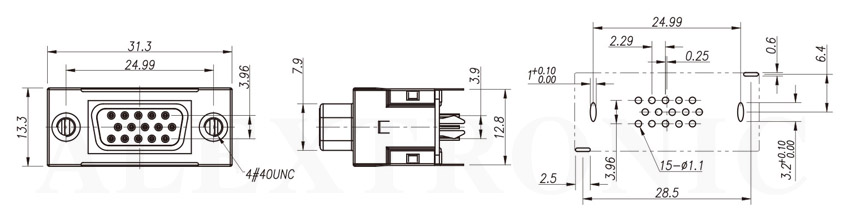

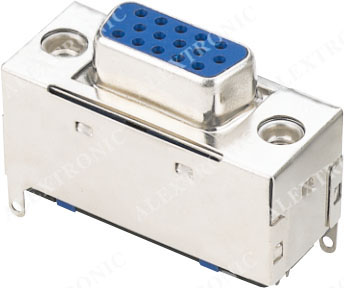

DB006F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

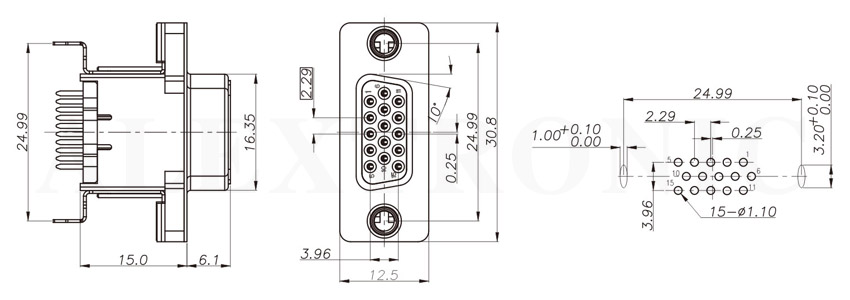

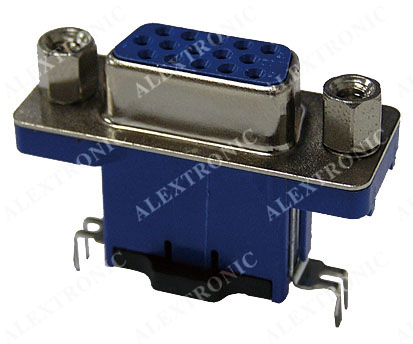

DB005F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

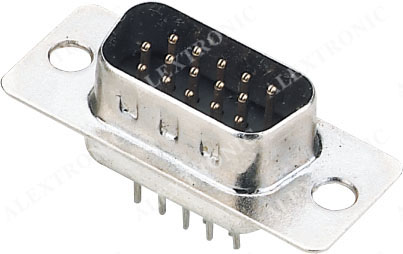

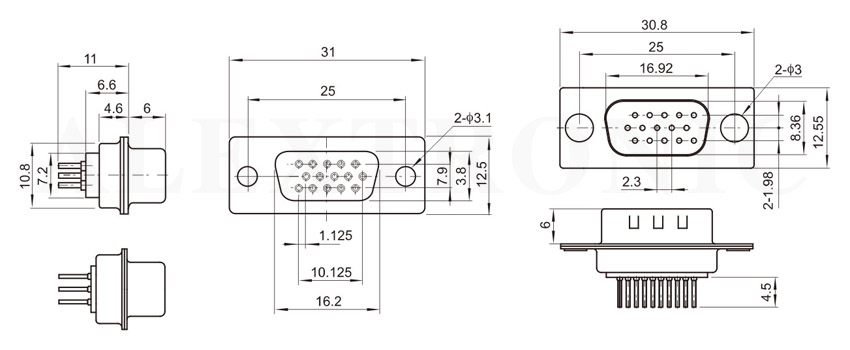

DB004M-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Male Plug, Vertical Angle, Through Hole...	• Dimension • 3D Model

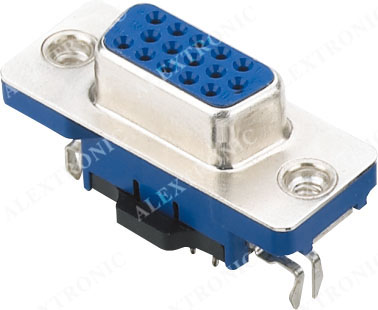

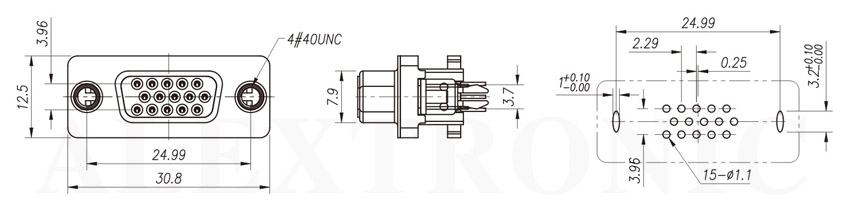

DB004F-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Female Receptacle, Vertical Angle, Through Hole...	• Dimension • 3D Model

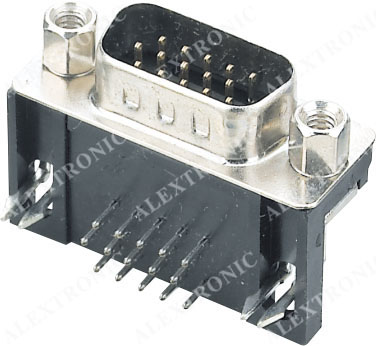

DB003M-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm...	• Dimension • 3D Model

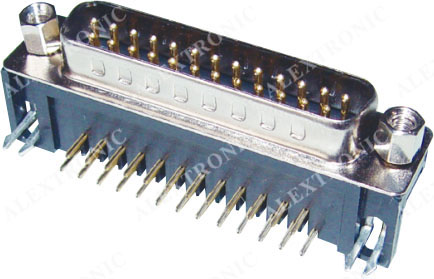

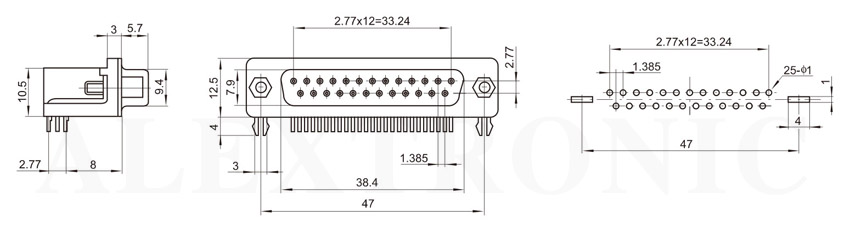

DB002M-25	Product Description	Documents
	D-SUB Socket, 25 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm...	• Dimension • 3D Model

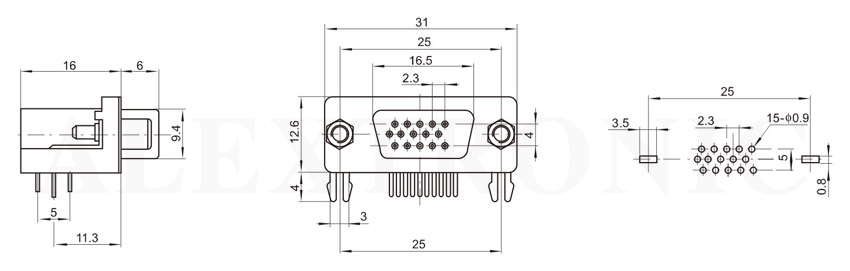

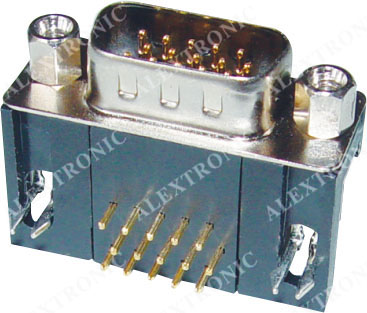

DB002M-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm...	• Dimension • 3D Model

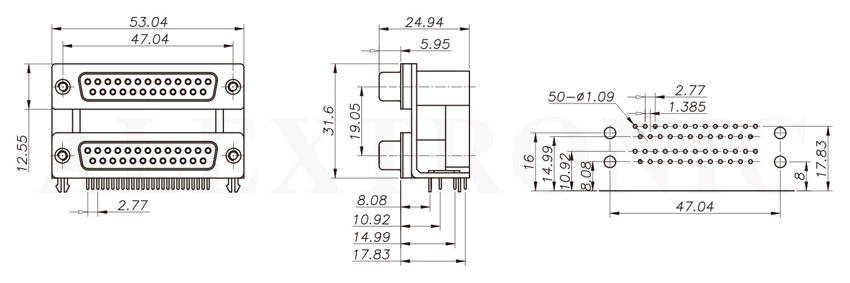

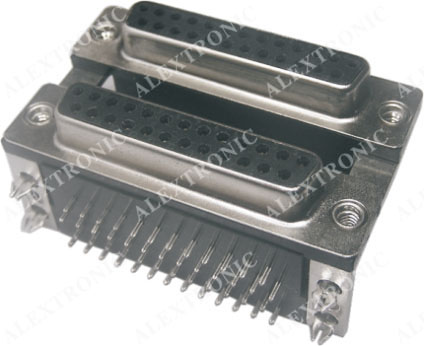

DB2F2F-B1	Product Description	Documents
	D-SUB Socket, 25 Pin+25 Pin, Female Receptacle, Right Angle, Through Hole.	• Dimension • 3D Model

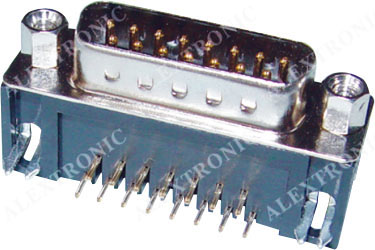

DB001M-15	Product Description	Documents
	D-SUB Socket, 15 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm...	• Dimension • 3D Model

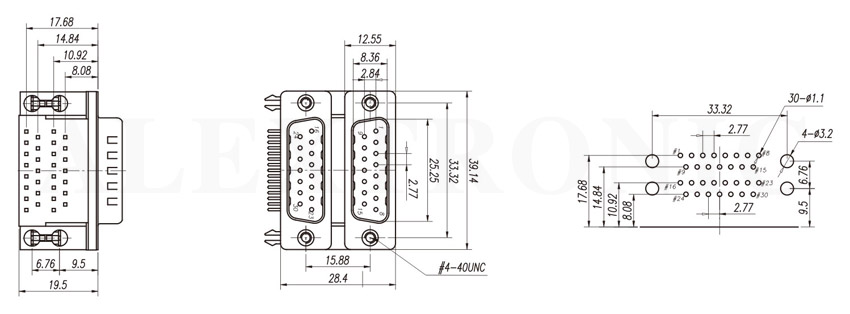

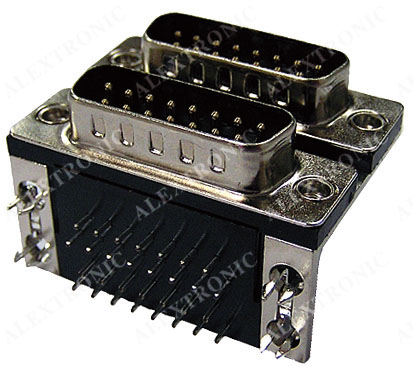

DB1M1M-B1	Product Description	Documents
	D-SUB Socket, Dual Port, 15 Pin+15 Pin, Male Plug, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

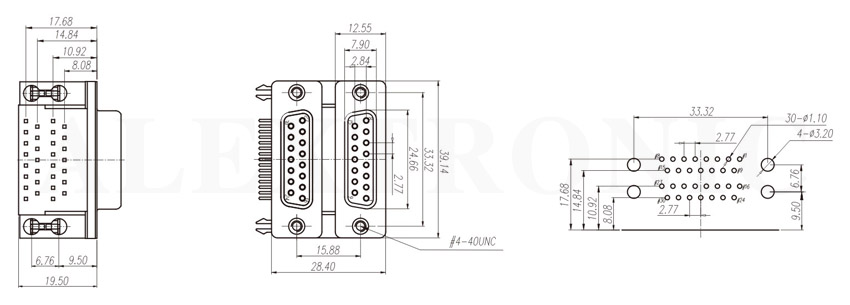

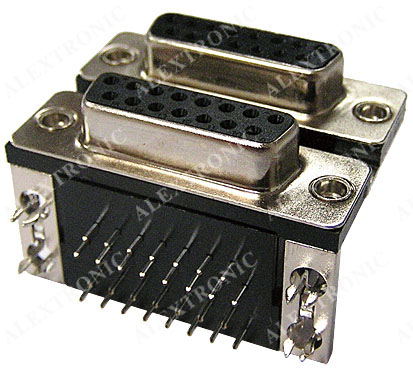

DB1F1F-B1	Product Description	Documents
	D-SUB Socket, Dual Port, 15 Pin+15 Pin, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model

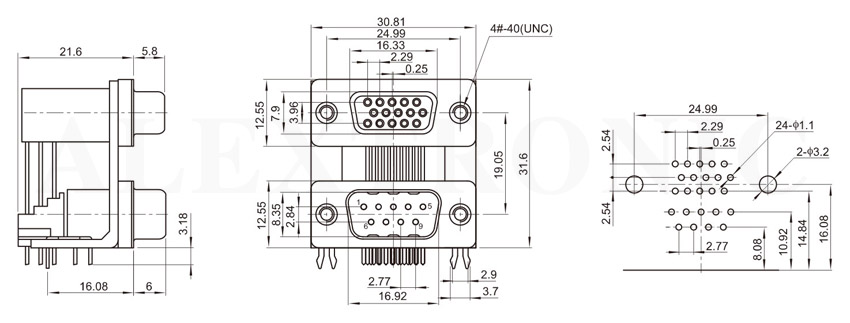

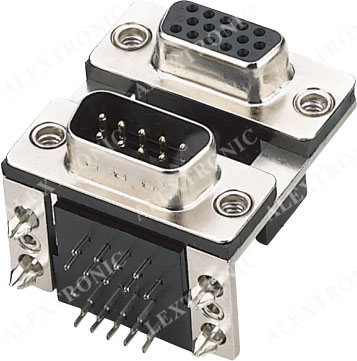

DB0M1F-81	Product Description	Documents
	D-SUB Socket, Footpint 9 Pin Male Plug+15 Pin Female Receptacle, High Density Connector Dual Port.	• Dimension • 3D Model

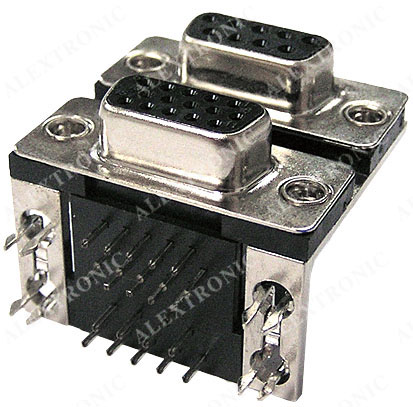

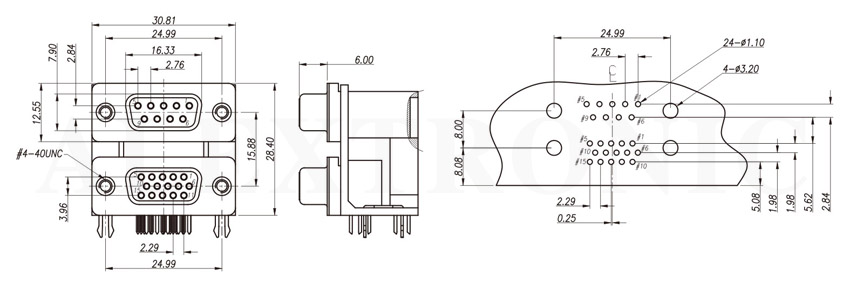

DB0F1F-51	Product Description	Documents
	D-SUB Socket, Dual Port, 9 Pin+15 Pin, High Density, Female Receptacle, Right Angle, Through Hole, PCB Thickness 1.60mm.	• Dimension • 3D Model
